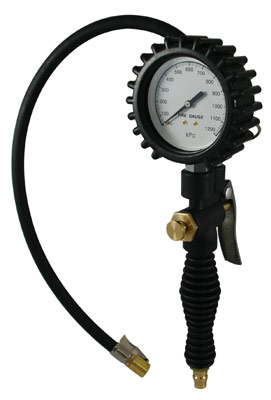

Item: 25TIG2 A/B/C/D (Tire inflator gauge)

• Dial: 2.5''
• ABS case and snap on acrylic window, gear type rubber boot, brass internal and connection,
• Large, easy-to-read 270^o dial face ensures a precise pressure reading
• Grip handle valve inflates air to desired pressure, Flexible
• 360^o  swivel hose, bleeding valve for deflation
• Range: 0-60 psi, 0-100 psi, 0-160 psi, available for bar, kg/cm², kpa etc
• Accuracy: 1.6%
• 1/4'' F-NPT inlet connection
• End:  Long rubber hose with clip on chuck  (25TIG2C)

Option:

• Heavy duty zinc alloy dual foot chuck with hook  (25TIG2A)
• Heavy duty zinc alloy dual foot chuck  (25TIG2B)
• Heavy duty extended length zinc alloy dual foot chuck (25TIG2D)

Suitable for any passenger vehicles, cars, truck, SUV, etc

We supply 4 end chuck designs for all tire inflator gauges for option

• Type A: Heavy duty zinc alloy dual foot chuck with hook
• Type B: Heavy duty zinc alloy dual foot chuck
• Type C: Long rubber hose with clip on chuck
• Type D: Heavy duty extended length zinc alloy dual foot chuck
